Konami – JAMA Board – Replacing Audio Hybrid Module

Konami Audio Hybride Module broken due capacitor leakage..

First I removed the old Module.

Then harvested the 054321 chip from the bottom of the old board.

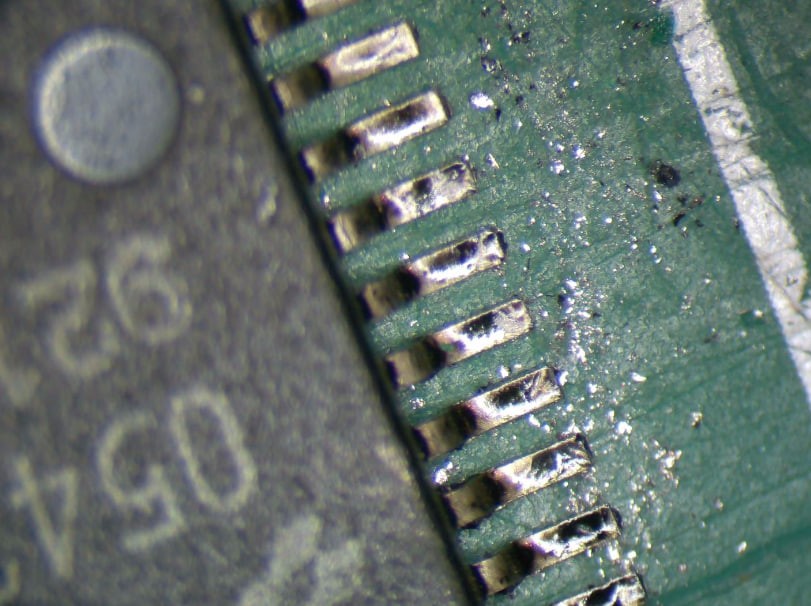

Cleaned the harvested chip, and soldered it onto the new board.



And placed the new Audio Hybrid Module onto the JAMA board.

More information about the Konami 054986A Audio Hybrid Module click here..
