3D Designs

Sometimes you run into a problem that a part is broken or missing, that’s when I’m starting to draw a new part from scratch based on the (a) original part.
Below you see various parts drawn/designed by me, all files are opensourced on Thingiverse.

Goto my Thingiverse page to see all my 3D designs.

Commodore Amiga

Amiga 1200 keyboard connector cap replacement.

Download model from thingiverse

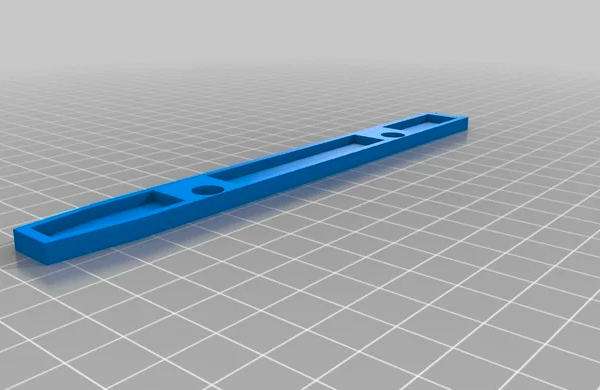

Amiga 4000 Power button extension bar

Replacement power button extension bar for the Amiga 4000.
Glue the both parts together with instant glue for example.
Many thanks to Paul Rezendes for printing and testing it as well.

Download model from thingiverse

Commodore Amiga 4000 DVI Mount for expansion port

Download model from thingiverse

Commodore Amiga diskdrive eject button Chinon FZ-354

Eject button for the Chinon FZ-354 diskdrive.
These buttons are getting lost very often.

Download model from thingiverse

Amiga 1200 Mainboard mounting clips & mouse mounting

Amiga 1200 Mainboard mounting clips & mouse mount if mainboard bottom shielding is missing.

Download model from thingiverse

Amiga 3000T 5,25″ mounting frames

5,25″ mounting frames for:
– Commodore Amiga 3000(T)
– Commodore Amiga 3500
– Commodore PC 60

Download model from thingiverse

Amiga 2000,3000,4000 Card Guide

Download model from thingiverse

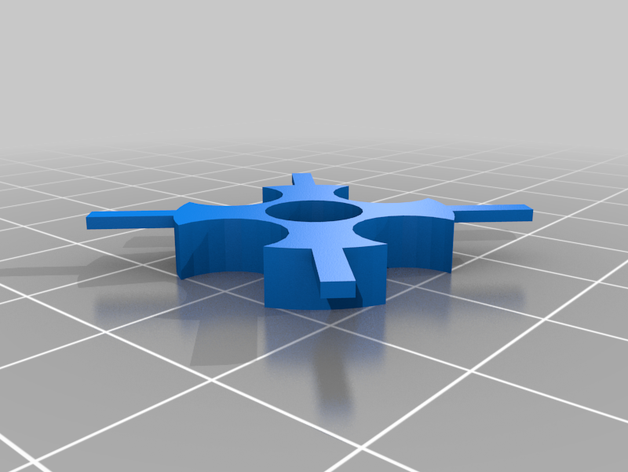

Amiga CD32 Controller D-Pad fix.

Simon Vergauwen wanted to have a part to fix a broken D-Pad for the Amiga CD32 Controller. I designed a part that can be used to fix the original D-Pad.

Download model from thingiverse

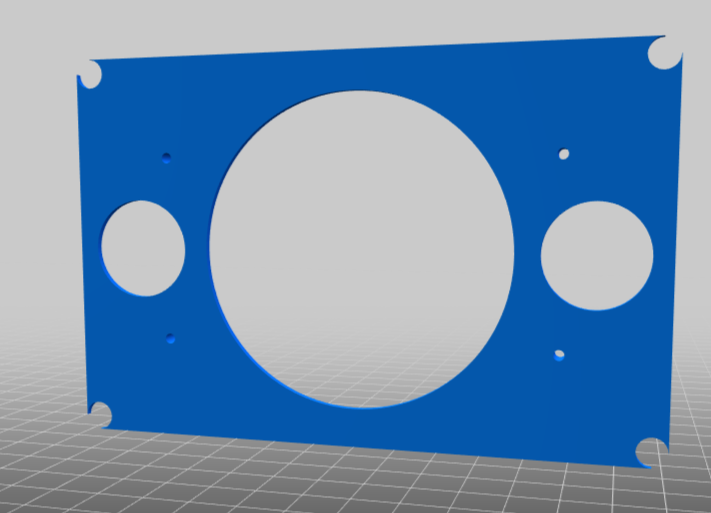

Amiga PSU (p/n: 312503-03) mounting plate for Meanwell RPT-60B PSU.

Perfect to fit Meanwell RPT-60B into Amiga PSU 312503-03.

Download model from thingiverse

Amiga PSU (p/n: 312503-03-13111) mounting plate for Meanwell RPT-60B PSU.

Perfect to fit Meanwell RPT-60B into Amiga PSU 312503-03-13111.

Download model from thingiverse

Commodore 64 / Ultimate64

Ultimate64 & C64 Reloaded power connector cover

Ultimate64 power connector cover.
Close the gap around the power connector.

Download model from thingiverse

Ultimate64 Multi-Button (Power Button) cap

Cap for Multi Button ( power button ) of the Ultimate64.

Remove original cap ( small one ) and replace with this one.
Angled like the board is placed in the C64 case.

Download model from thingiverse

Ultimate64 board support clips

Clips to support the Ultimate 64 board.

Download model from thingiverse

Various

Famicom Expansion Port ( DA15 ) Cover

Famicom Expansion Port ( DA15 ) Cover.
Most Famicom machine are missing this cover.

Download model from thingiverse

Hakko T12 solder tip holder

Downloadmodel from thingiverse

Fume Extractor

Downloadmodel from thingiverse

For more information see blog article..

Vectrex

Vectrex Controller Cable Membrane

Use this membrane to attach replacement joystick cable to a Vectrex controller.
Easy to attach and hold the replacement cable on inplace

Download model from thingiverse

Sinclair

Sinclair SPJ-1 Axis replacements

New inner axis for the Sinclair SPJ 1 joystick.

I made a low & high version.

Download model from thingiverse
