Arduino Leonardo – Micro Pro bootloader flash

You are here:

Bootloader upload / fix

If the Arduino Micro Pro isn’t working/detected by your OS anymore, you have to fix the bootloader.
To do this you can use an USBASP device.





Wiring

Signal USBASP Arduino
Micro Pro
MOSI 1 D16
VCC 2 VCC
RESET 5 RST
SCK 7 D15
MISO 9 D14
GND 10 GND

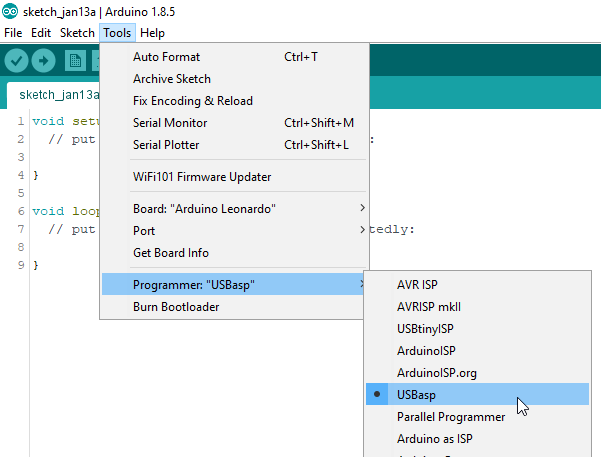

Replace bootloader



  • Select the Board “Arduino Leonardo”
  • Select the Programmer: “USBasp”
  • Click on Burn Bootloader






Last Updated On January 15, 2019
