Vectrex – fix / refurbisch broken controller

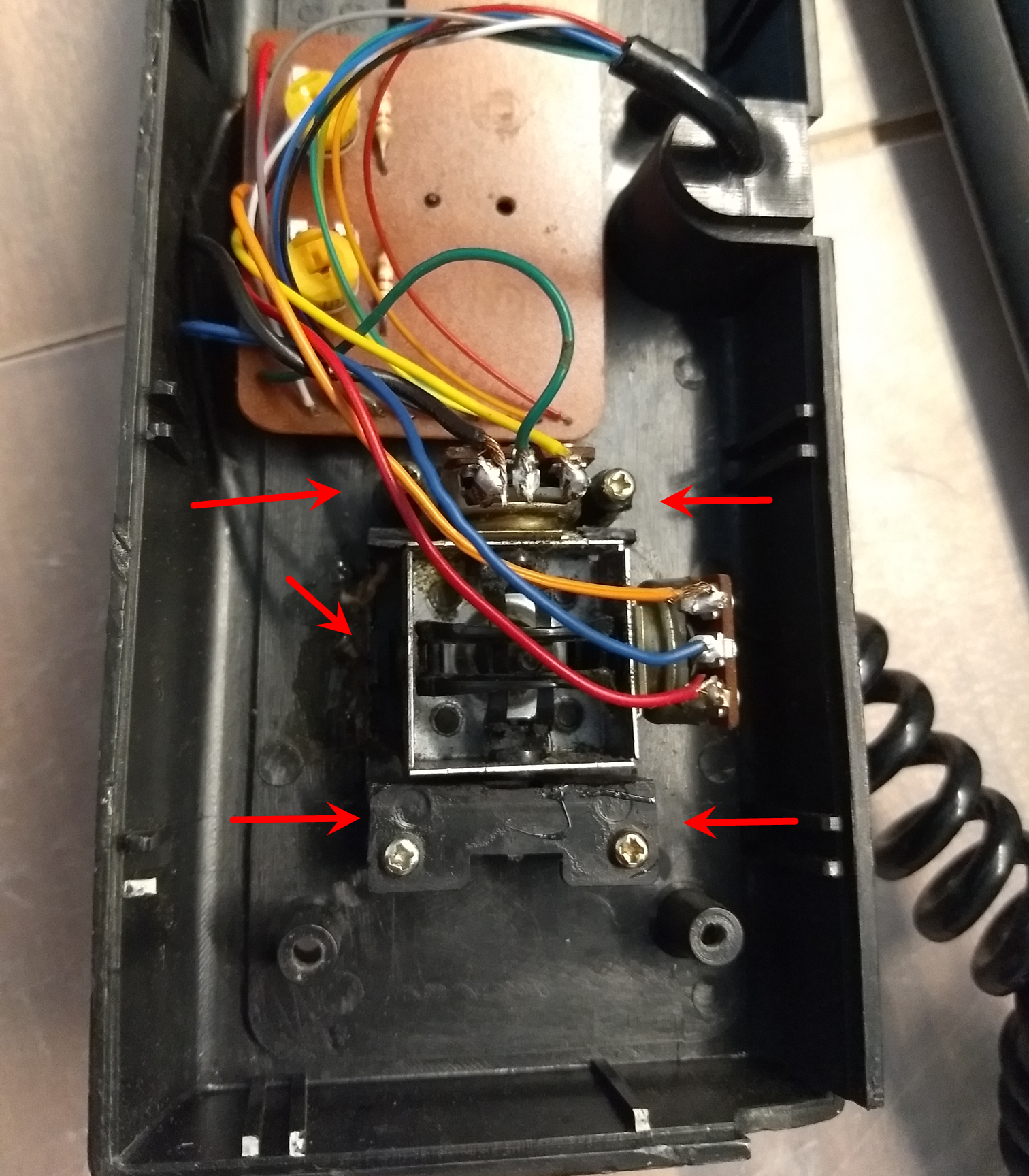

Vectrex Joystick mounting bracket is broken.

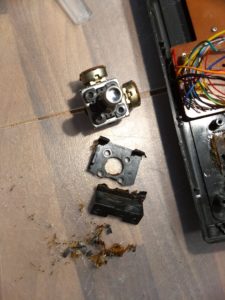

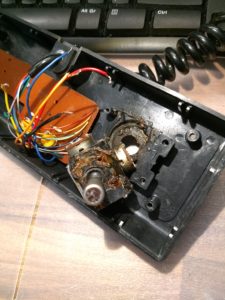

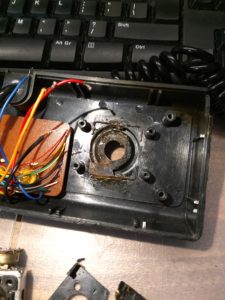

The mounting bracket of the joystick is broken, someone glued it to the controller but it came loose. I wanted to design ( remake ) a new bracket, but a search on thingiversie was a briliant idea! Someone already designed it! 🙂 Downloaded the STL file and printed it on my 3D printer.


Open thingiverse page to get the STL file.

Printed the new bracket, and mounted it to the controller.

New wires

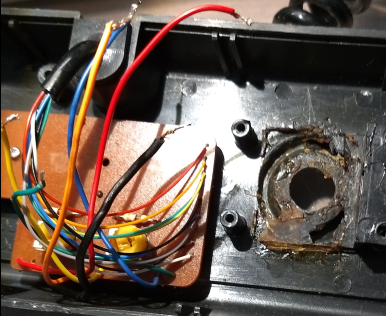

Replaced the wires that are connected to the potmeters, because the existing wires where a mess and not original.

Cleaning time

Cleaned the button traces on the pcb, because there was a lack of response.

Result

The controller works again as it supposed to work.
Ohhhh, also replace the screws, they used screws with convex heads. 🙁

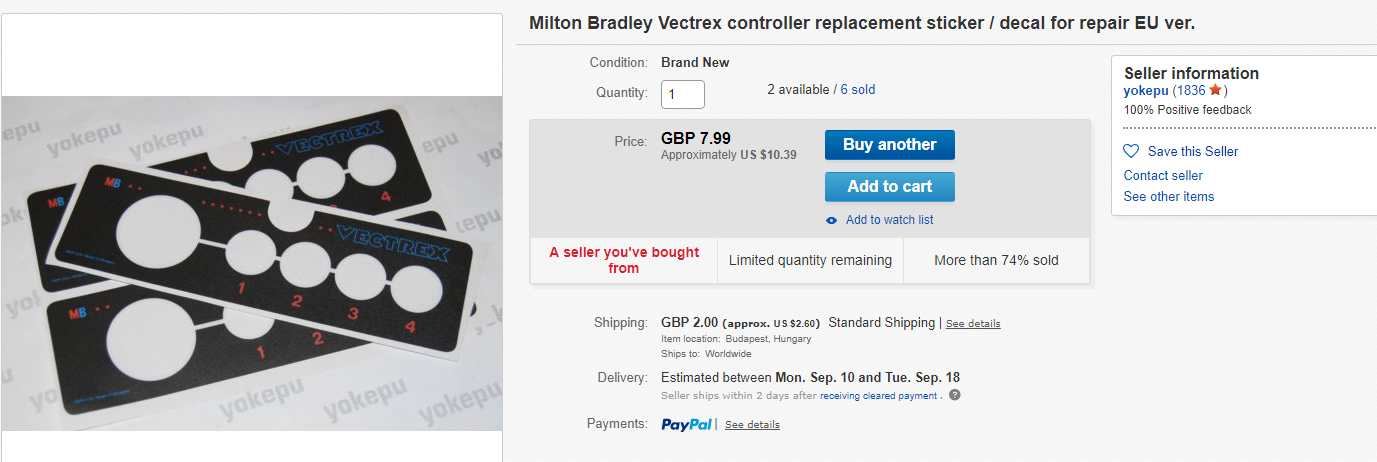

My controller had no decal, ordered new ones from ebay.

Open Ebay item.

New decal has arrived

update 2018-09-08



Attached new decal to the controller, and it looks awesome again!
