Recap NEC PCEngine Super Grafx

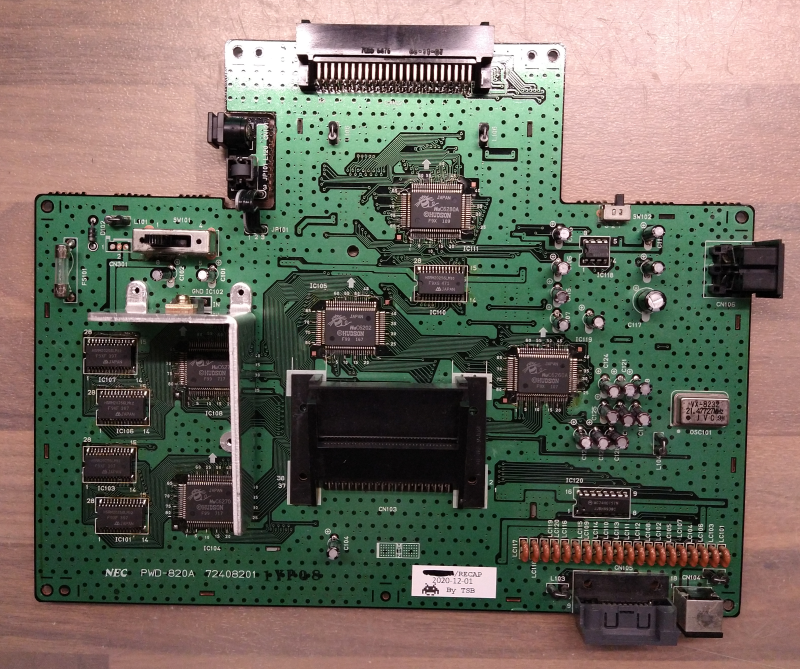

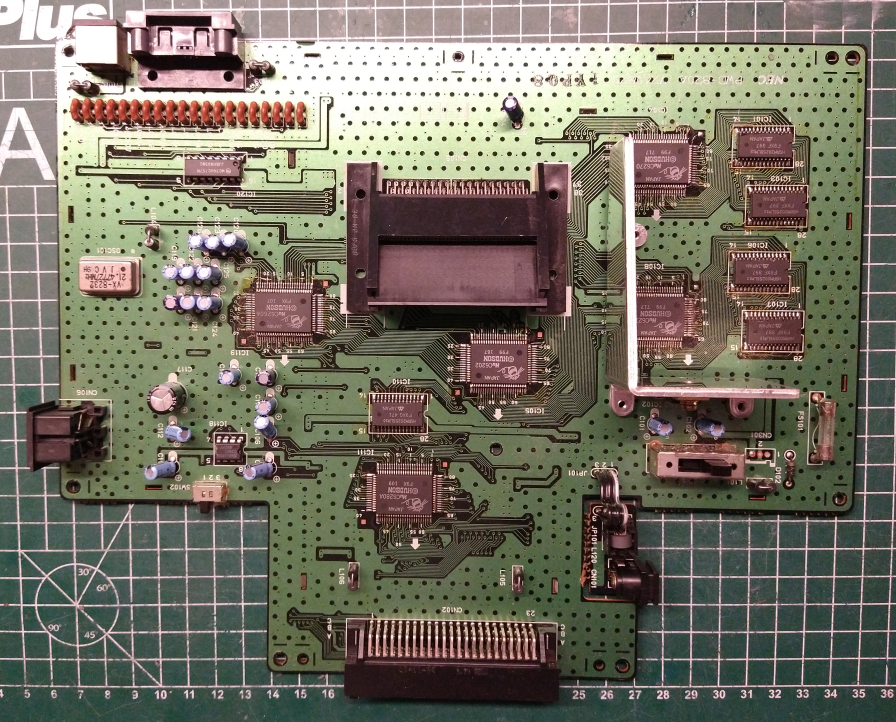

Did a recap on beautiful machine, the NEC PCEngine Super Grafx (PI-T64).

Also performed the jailbar fix.

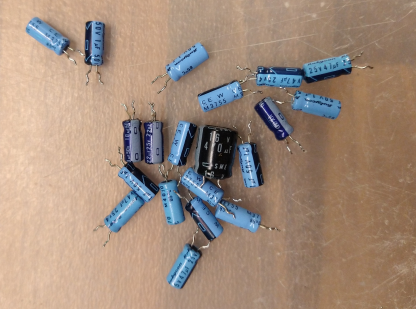

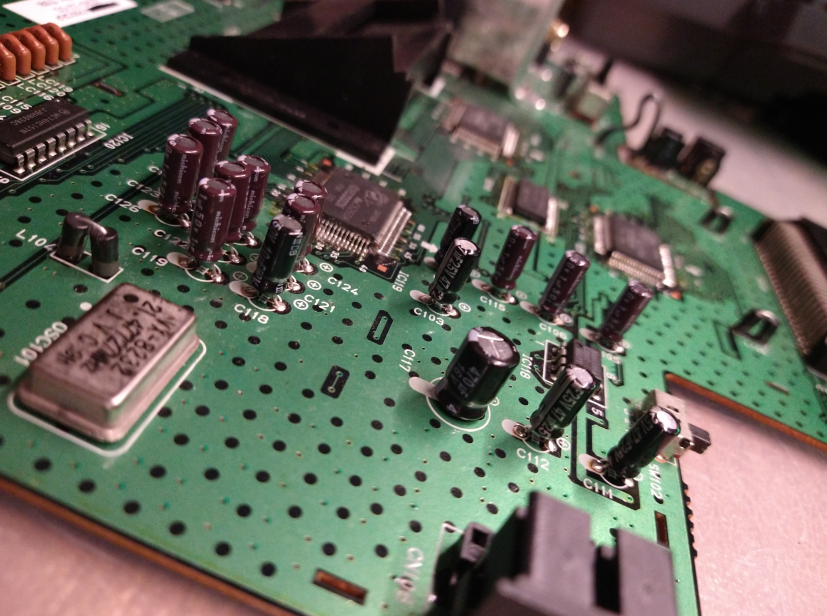

Capacitor list

1uF / 50V C105, C106, C115, C119, C120, C121, C 122, C123, C124, C125
10uF / 50V C107, C118
22uF / 25V C104
47uF / 25V C101, C102, C103, C111, C112
470uF / 16V C117

Jailbar fix

2x 4,7uF ceramic capacitor. C168, c169
