E-Matrix 1230-50 / dead

Amiga 1200 – E-matrix 1230-50MHz

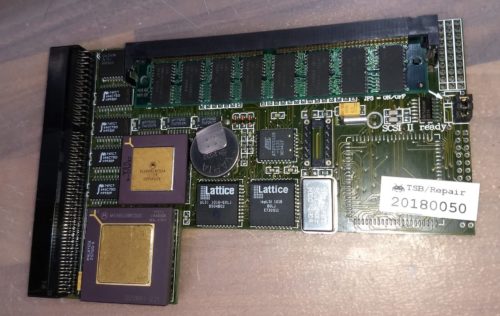

Got an E-Matrix 1230-50MHz for repair.
Owner tried to replace Oscillator, but that didn’t end up well.. πŸ™

Problems found

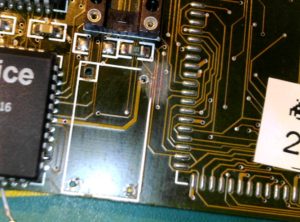

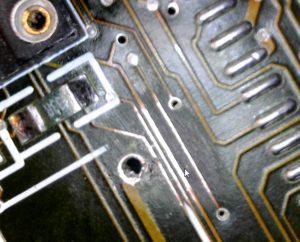

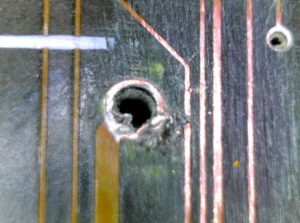

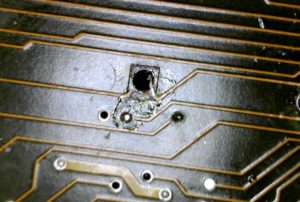

  • 2 broken traces
  • Dead Oscillator 50MHz
  • Not working SIMM RAM module

Fixes

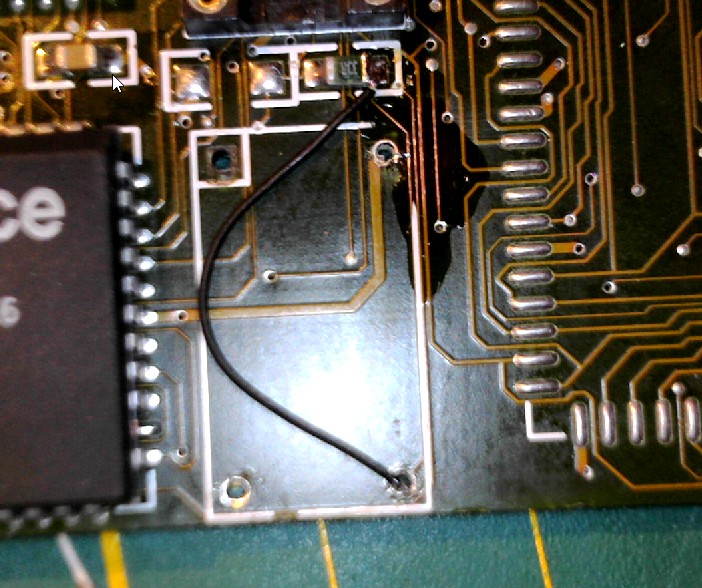

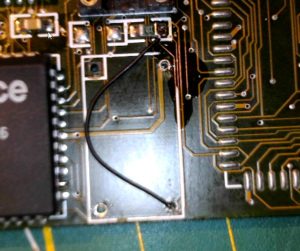

  • Fixed traces with jump wires
  • Replaced Oscillator
  • Used own 8MB SIMM to test card
