CD32 – blown with wrong supplied power.. and a bug..

CD32 came in for repair, owner accidentally hooked it up to wrong psu.. Result, machine not working anymore..

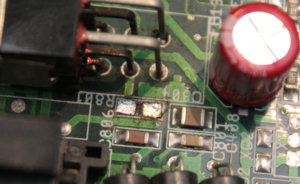

R801 (0 Ohm) was broken, it was floating between 150 – 1M Ohms.

Replaced it with new 0 Ohm resistor and the machine is working again.. tested all main components, and it seems no problems.

I found a bug on the board..

A little spider had made his home under the KickStart ROM, and he died there.. 🙁

Test results with DIAGROM For IRQ, CIA & Memory.

So main parts seem to work as they should.
