Amiga 600 – i’m blue daba dee dabba da

The issue

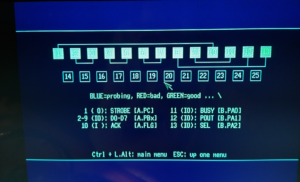

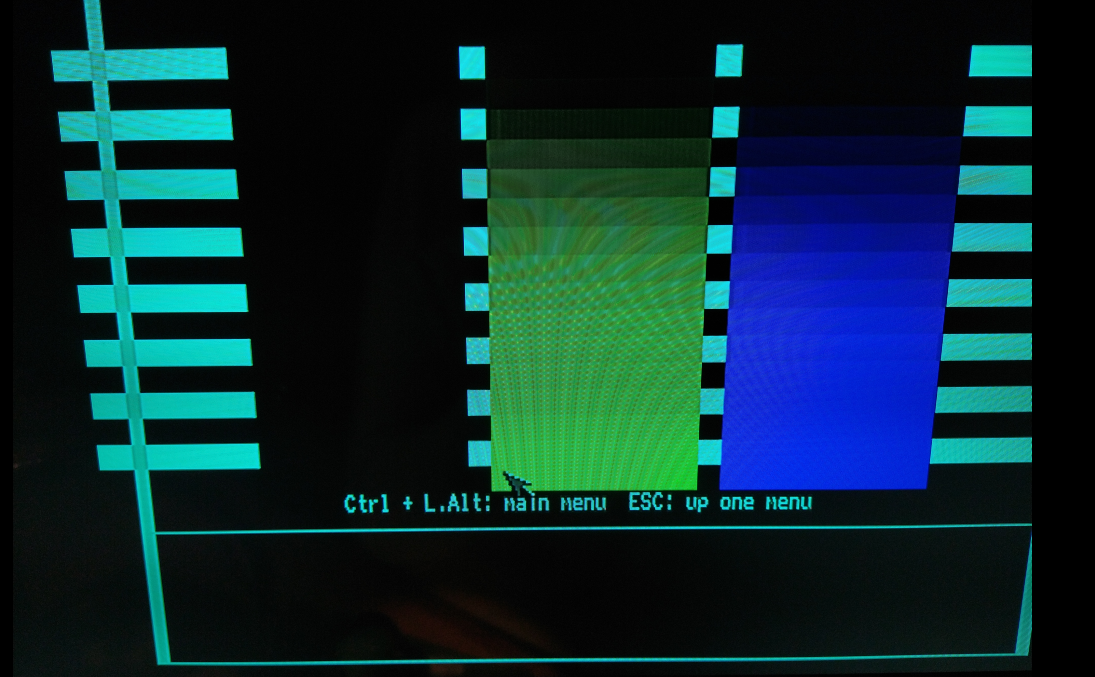

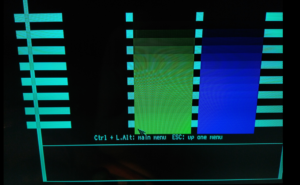

On the workbench, an Amiga 600 which has a blue/green screen.. Red is missing.

And Audio isn’t working as it should.

The cause

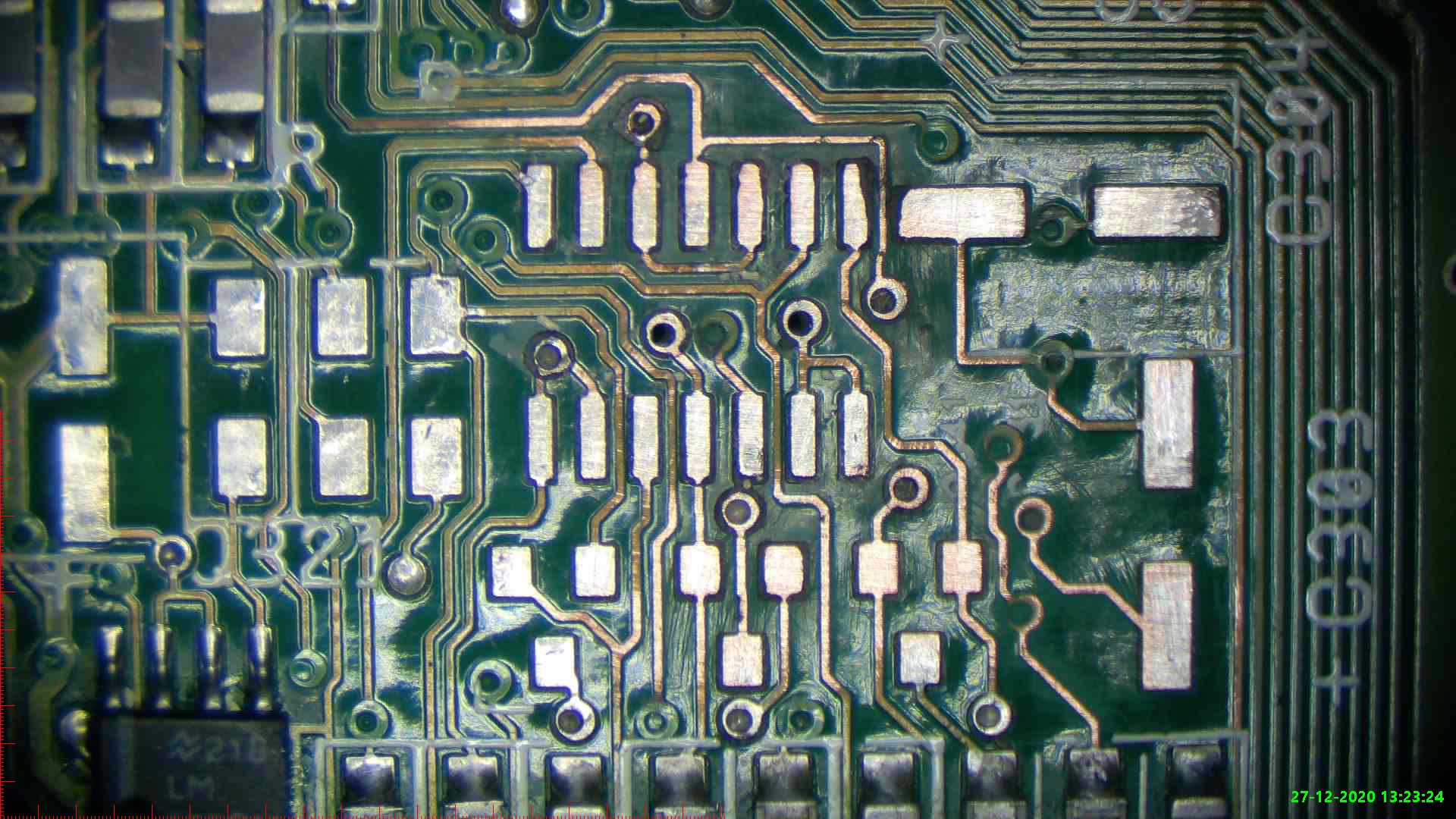

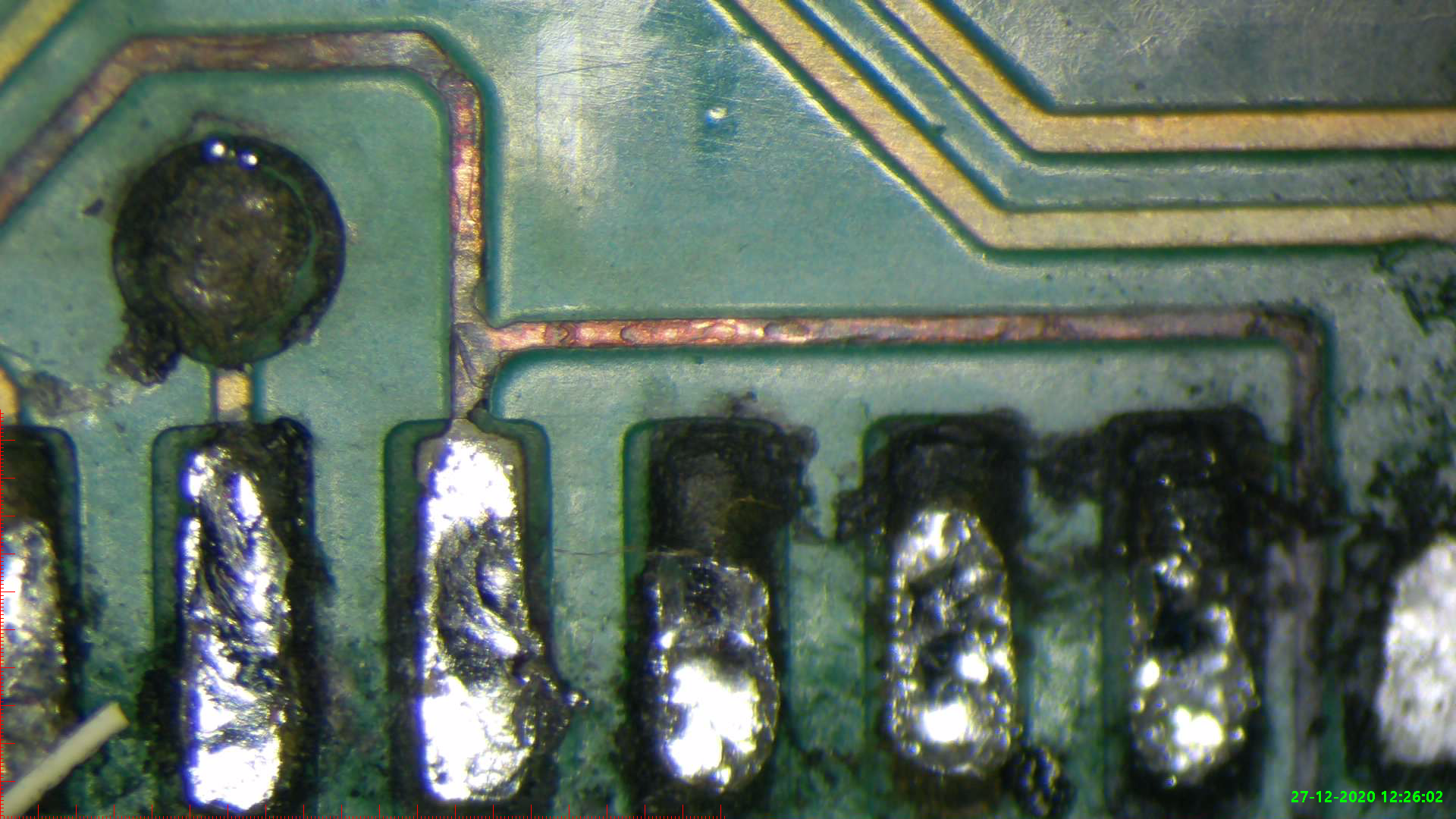

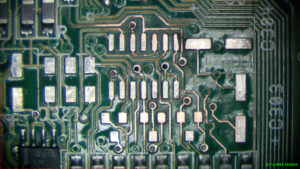

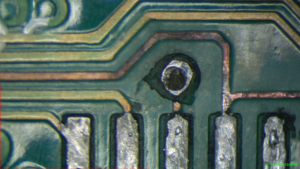

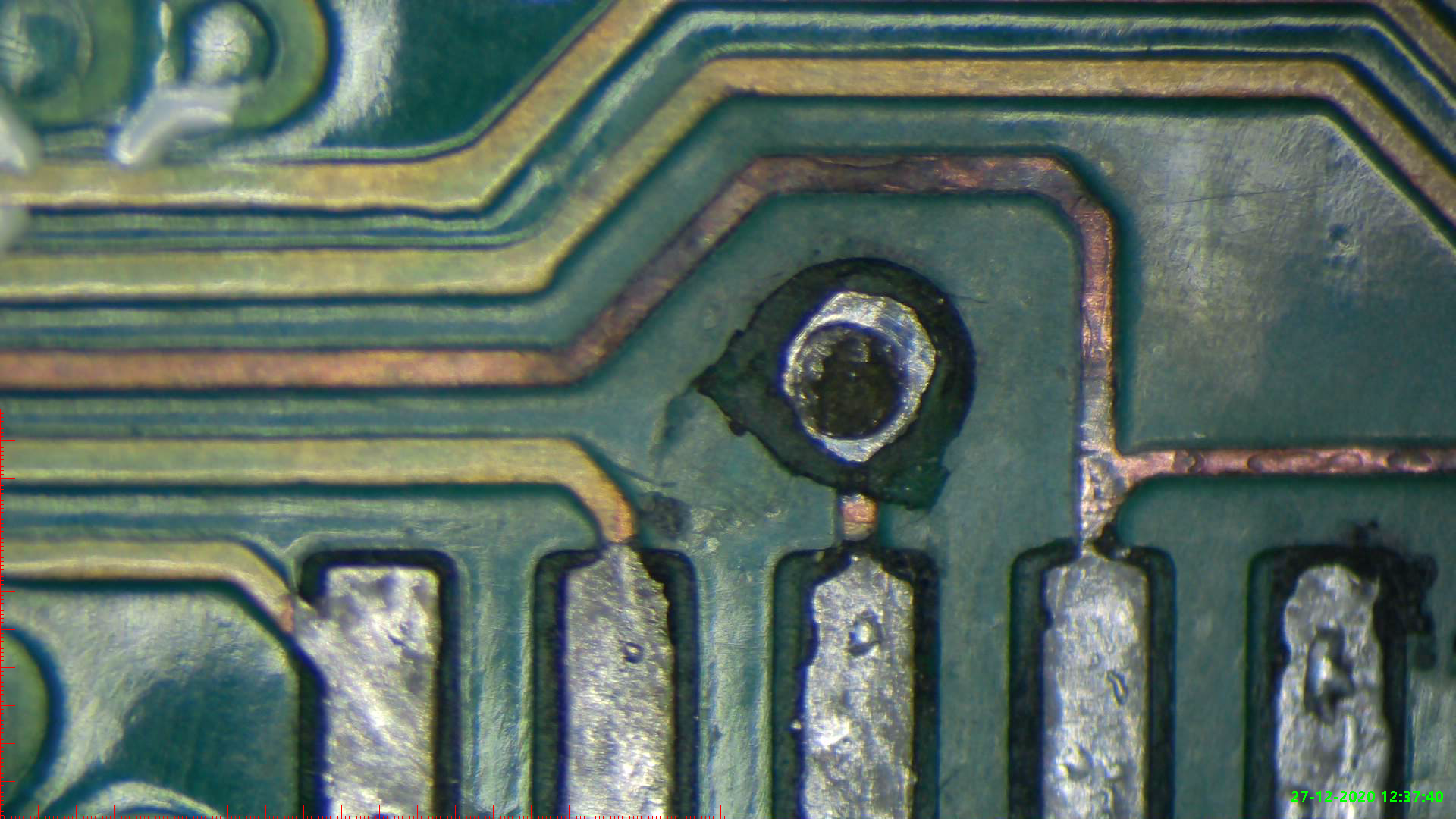

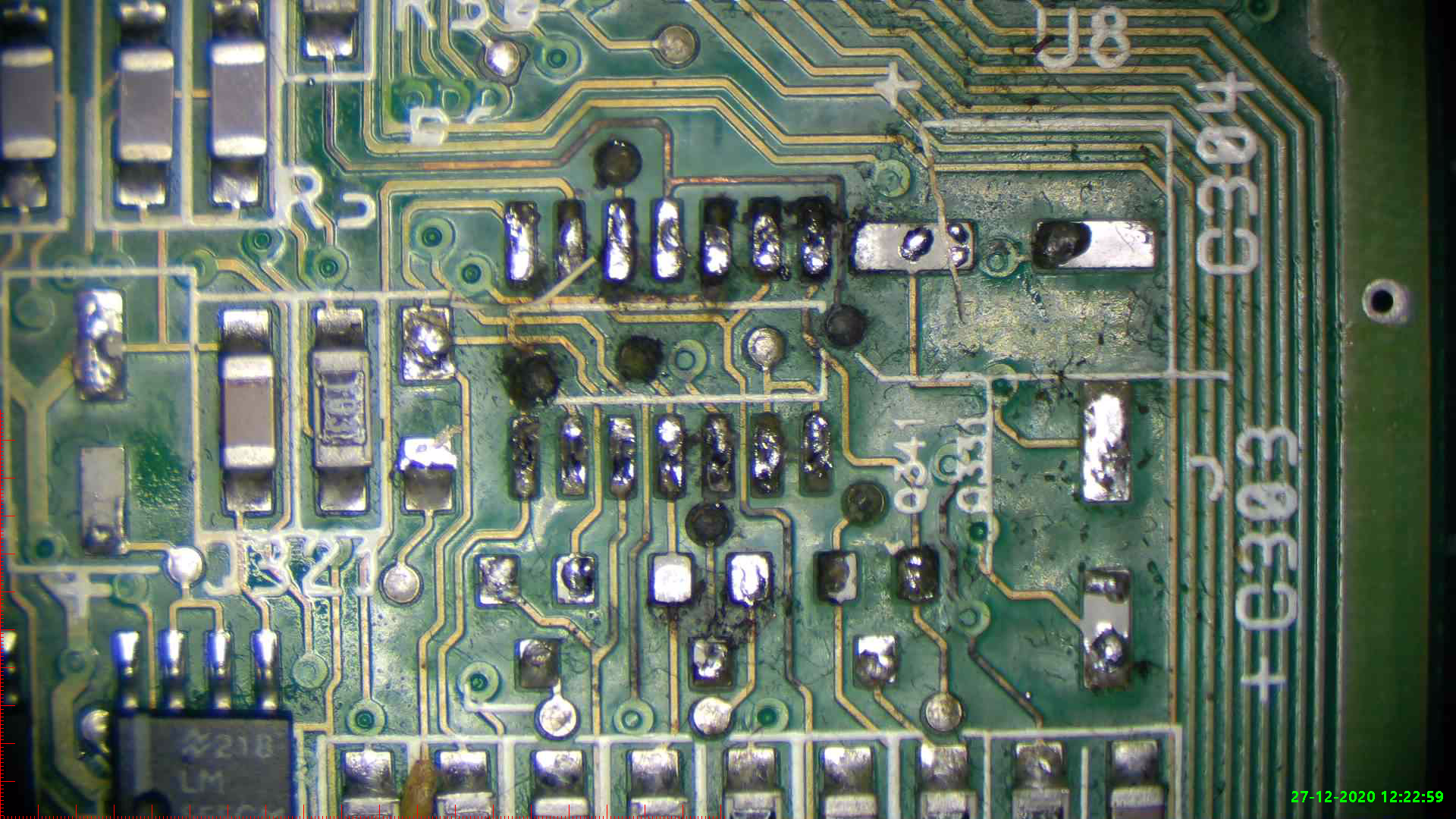

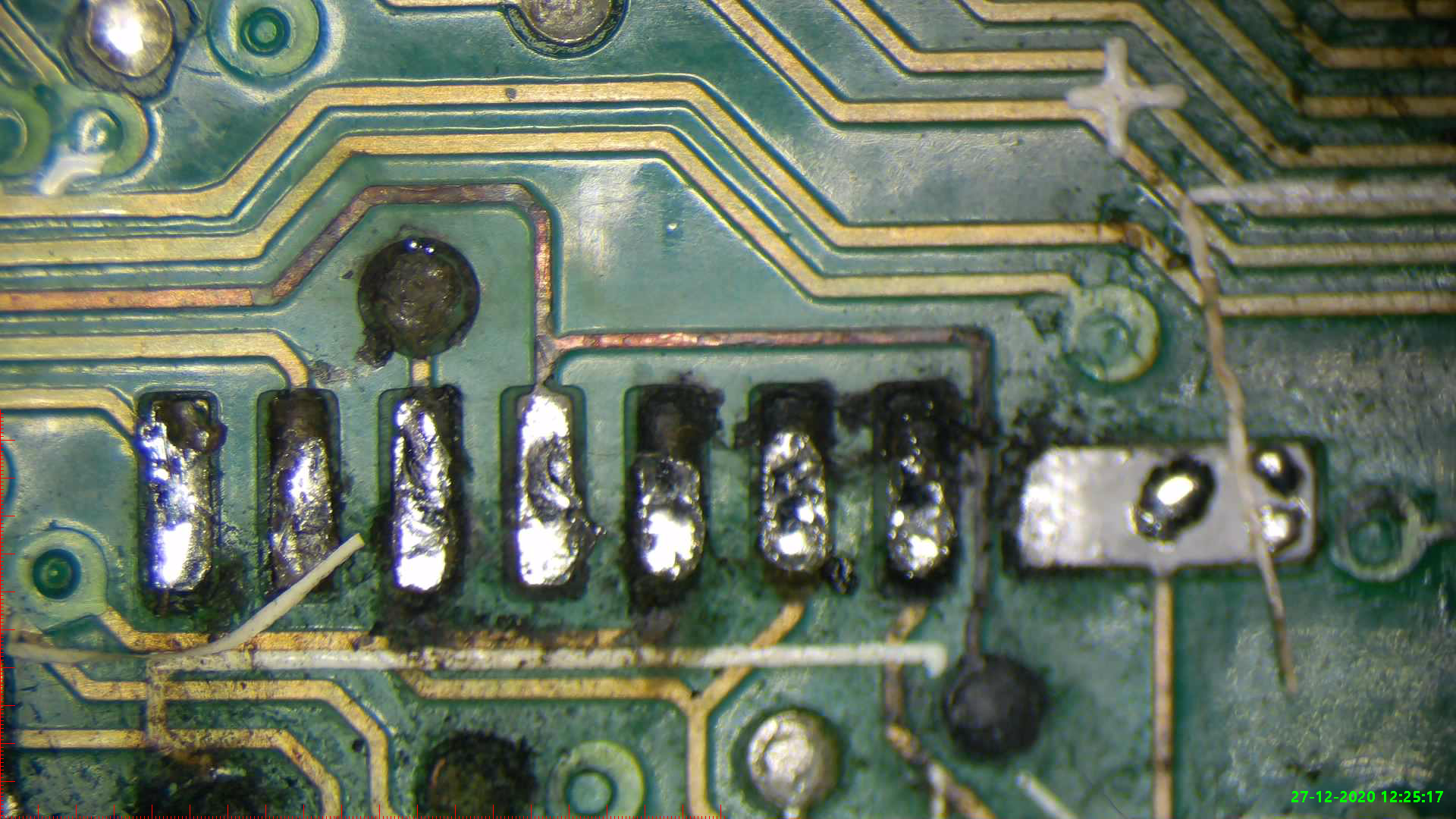

As I inspected the board I saw very much corroded pins/solder.

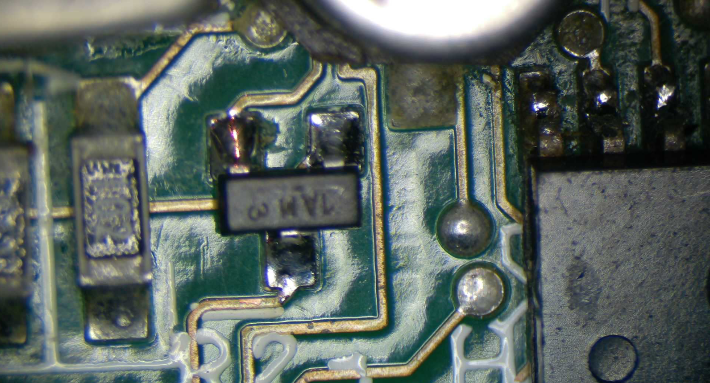

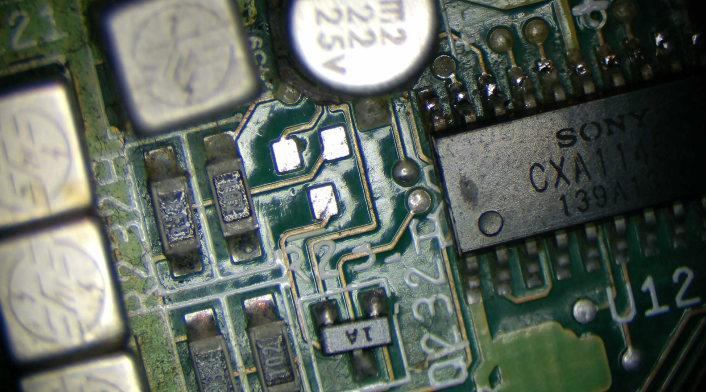

The red signal is missing, so we focus on the R_out of the CXA1145 encoder. The problem was found in/after the Q231 (2N3904) transistor.

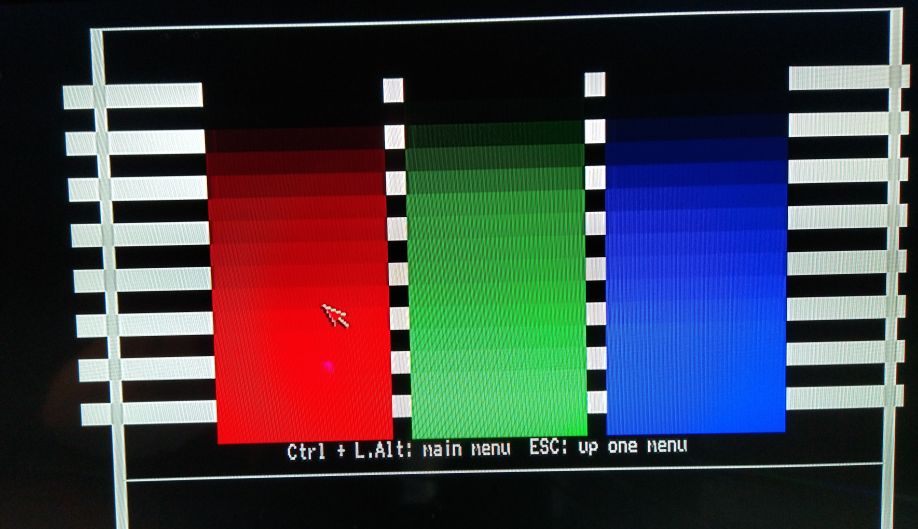

Replaced it, and whoop! colours are back again..



Bad audio!

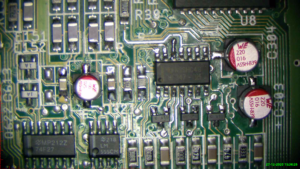

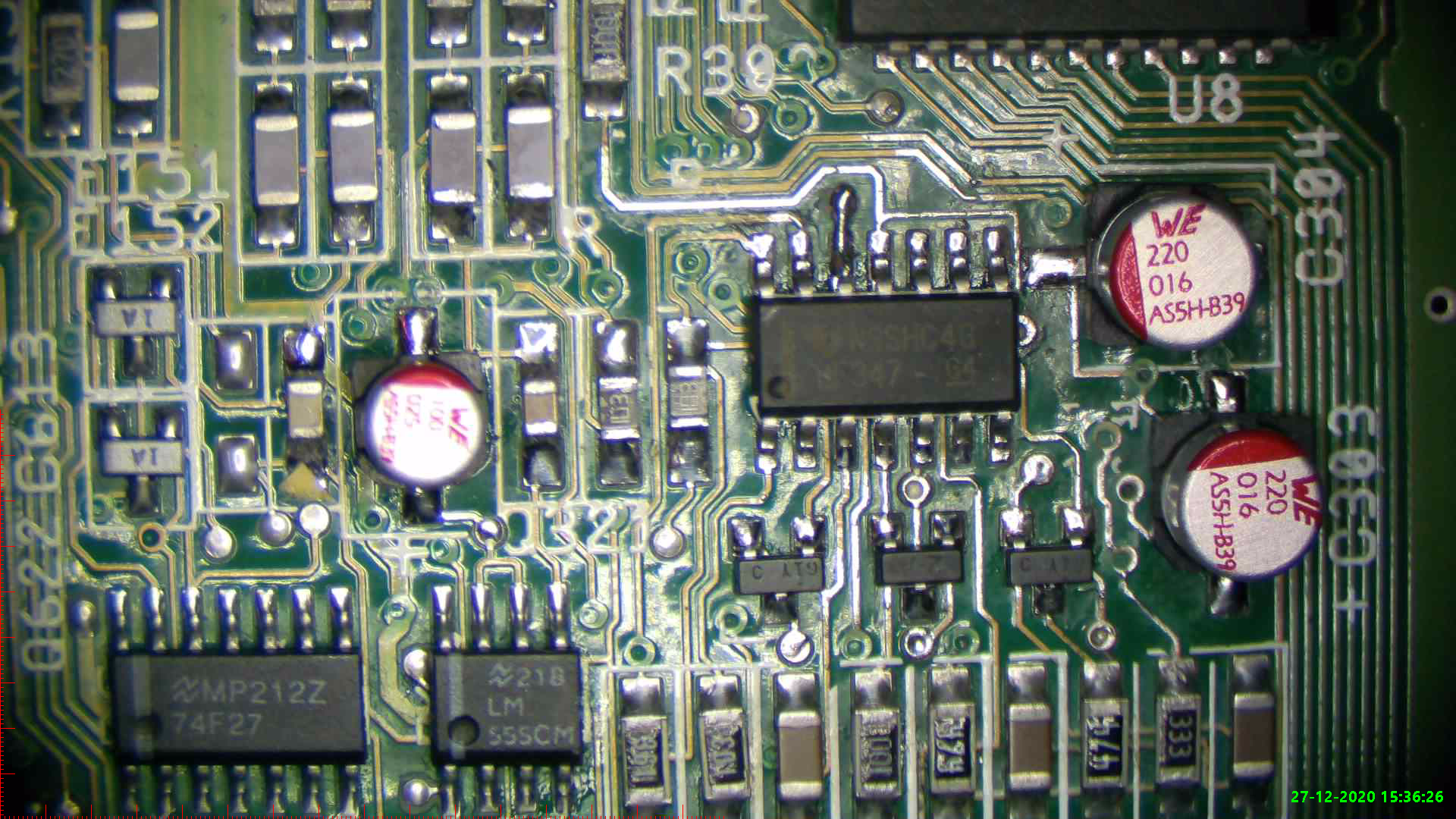

As you can see the area around the 347 opamp, is a bit corroded. Cleaned it, and did an inventory of broken traces.. after that I reconstructed everything and audio is back again.
