A1200 with timer failure on CIA-A (u7) with amiga test kit (ATK).
Removed CIA (U7)

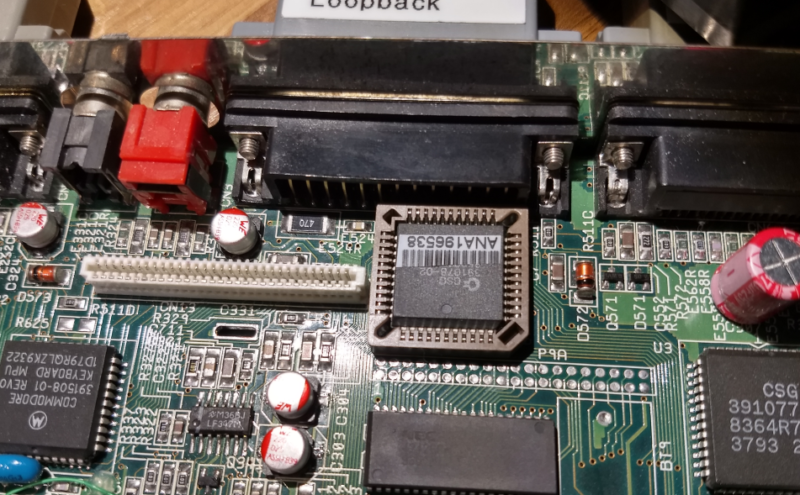

Placed PLCC44 socket and new CIA
Result.. Timers are working again.
A1200 with timer failure on CIA-A (u7) with amiga test kit (ATK).
Removed CIA (U7)
Placed PLCC44 socket and new CIA
Result.. Timers are working again.
Hello, im the same problem with my Commodore Amiga Escom 1200 and thanks to you, now i know what is that i need to do to repair it. Thanks you very much my friend!
You’re welcome!
That’s why I share this information, to help other people. 🙂
I have the same problem, Amiga test kit shows the same error, but on DiagROM it passes all test OK. Machine seems to work fine though. What did you use to desolder the IC and solder the PLCC socket. Thanks!
Hmmm that’s strange, I don’t know if the DiagROM will pass/fail this, did not try that. My suggestion is to get the last Amiga Test Kit ADF and the same for DiagROM. before you start to remove the CIA.
What I use:
– Hotair station to desolder the CIA
– Kapton tape (the yellow(ish) tape) to protect the plastics and small parts from the heat
– To solder the socket I use a normal tip and solder it pin for pin
Hi, my A1200 returns with the same problem but on CIAB, but seems to work correctly…mouse, floppy (DF0 and DF1), keyboard and joysticks works correctly.
I do not have the Diagrom to test, but do you thinks should be a “false negative” ?
Many thanks
You also tested it with the Amiga Test Kit (ATK)(Systest)?
I don’t know if it’s a false negative, you could reachout to Keir Fraser, who wrote the ATK..
I just wanna chime in and say that I had this exact error, floppy drive wouldn’t work at all, replaced the CIA and it’s fine again.
Nice! That’s why I share information like this 🙂
